Amanah Laundry

Amanah Laundry is a web-based laundry management system built to streamline day-to-day operations of a laundry business — from receiving customer orders to tracking laundry progress, processing payments, and generating transaction reports.

Overview


Type Web Application (CMS)
Stack PHP, Laravel, MySQL, Midtrans Snap
Deployment Shared Hosting

Features

  • Order Management — Create and manage customer laundry orders with item details, weight, and service type (regular, express, dry clean).
  • Laundry Tracking — Monitor the status of each order through stages: received, washing, drying, ironing, ready for pickup, and completed.
  • Payment Processing — Integrated with Midtrans Snap for seamless in-app payments supporting credit/debit cards, bank transfers, and e-wallets (GoPay, OVO, Dana, ShopeePay). Handles payment callbacks and updates order status automatically upon successful payment.
  • Transaction Reports — Generate daily, monthly, and custom-range reports covering revenue, order volume, and payment status.
  • Customer Management — Maintain a customer database with order history and contact information.
  • Price List Management — Configure service types and pricing per kg or per item for different laundry categories.
  • User Authentication — Role-based access control with separate permissions for Admin and Kasir.

Tech Stack

Technology Purpose
PHP & Laravel Backend framework, routing, business logic
MySQL Relational database for storing all business data
Blade Templating Server-side rendered frontend views
Midtrans Snap Payment gateway — cards, bank transfer, e-wallets
Shared Hosting Deployment environment

Roles & Access

Role Access
Admin Full access — orders, payments, reports, customer data, price list, user management
Kasir Operational access — create orders, process payments, update order status, view reports

Highlights

This project was built as a full-stack solution covering the complete workflow of a laundry business. It replaced manual paper-based tracking with a digital system, reducing errors in order management and making financial reporting significantly faster.

Database Design

Designed with 7 core tables covering users, customers, services, orders, order items, payments, and reporting. All relationships are defined with foreign keys to maintain data integrity.

Table Description
users Login credentials and role (admin / kasir)
customers Customer profiles and contact information
services Laundry service types with pricing per kg or per item
orders Order header with customer reference, status, and due date
order_items Line items per order linked to service type
payments Payment records with Midtrans transaction details and status
reports Generated report records with summary data

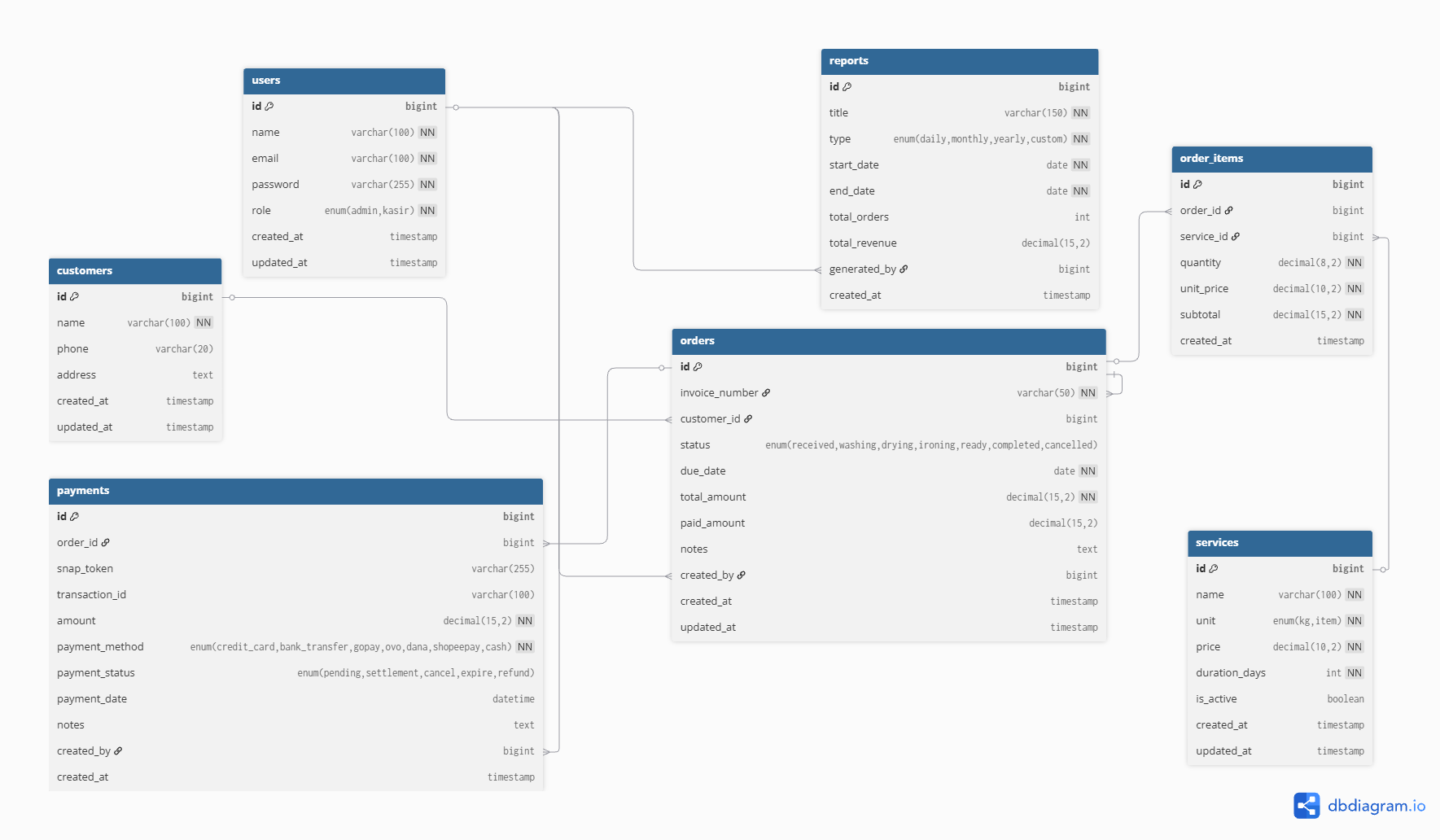

Amanah Laundry Database Design

View full ERD on dbdiagram.io — paste the DBML below to render it.

Show DBML schema ```dbml Table users { id bigint [pk, increment] name varchar(100) [not null] email varchar(100) [unique, not null] password varchar(255) [not null] role enum('admin', 'kasir') [not null, default: 'kasir'] created_at timestamp updated_at timestamp } Table customers { id bigint [pk, increment] name varchar(100) [not null] phone varchar(20) address text created_at timestamp updated_at timestamp } Table services { id bigint [pk, increment] name varchar(100) [not null, note: 'e.g. Regular Wash, Express, Dry Clean'] unit enum('kg', 'item') [not null, default: 'kg'] price decimal(10,2) [not null] duration_days int [not null, default: 3, note: 'Estimated days to complete'] is_active boolean [default: true] created_at timestamp updated_at timestamp } Table orders { id bigint [pk, increment] invoice_number varchar(50) [unique, not null, note: 'e.g. INV-20220501-001'] customer_id bigint [ref: > customers.id] status enum('received', 'washing', 'drying', 'ironing', 'ready', 'completed', 'cancelled') [default: 'received'] due_date date [not null] total_amount decimal(15,2) [not null] paid_amount decimal(15,2) [default: 0] notes text created_by bigint [ref: > users.id] created_at timestamp updated_at timestamp } Table order_items { id bigint [pk, increment] order_id bigint [ref: > orders.id] service_id bigint [ref: > services.id] quantity decimal(8,2) [not null, note: 'kg or item count'] unit_price decimal(10,2) [not null] subtotal decimal(15,2) [not null] created_at timestamp } Table payments { id bigint [pk, increment] order_id bigint [ref: > orders.id] snap_token varchar(255) [note: 'Midtrans Snap token for payment popup'] transaction_id varchar(100) [note: 'Midtrans transaction ID from callback'] amount decimal(15,2) [not null] payment_method enum('credit_card', 'bank_transfer', 'gopay', 'ovo', 'dana', 'shopeepay', 'cash') [not null] payment_status enum('pending', 'settlement', 'cancel', 'expire', 'refund') [default: 'pending'] payment_date datetime notes text created_by bigint [ref: > users.id] created_at timestamp } Table reports { id bigint [pk, increment] title varchar(150) [not null] type enum('daily', 'monthly', 'yearly', 'custom') [not null] start_date date [not null] end_date date [not null] total_orders int total_revenue decimal(15,2) generated_by bigint [ref: > users.id] created_at timestamp } ```
